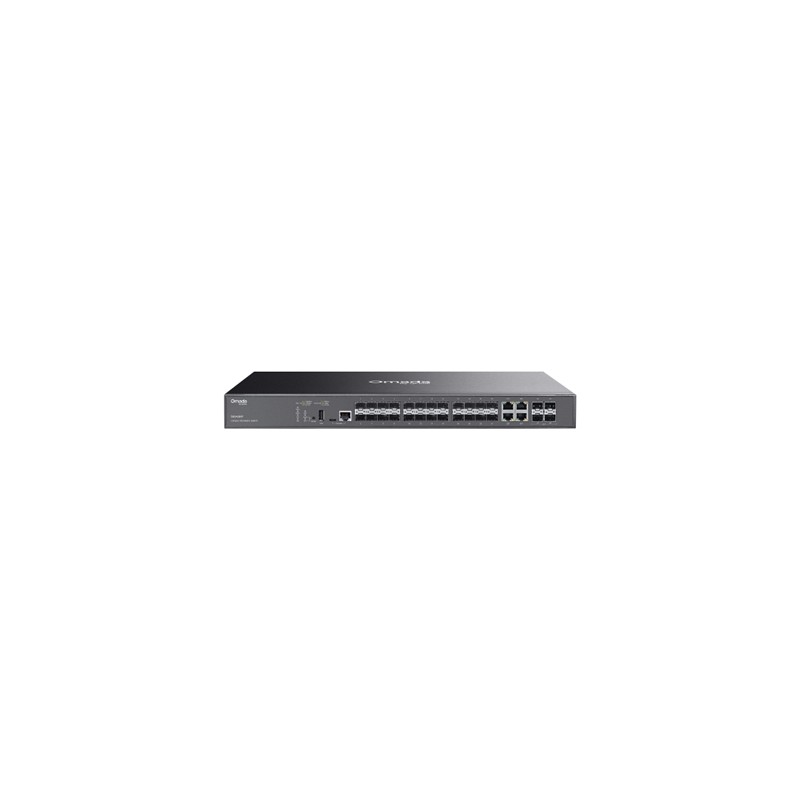

SWITCH 24P LAN GIGABIT TP-LINK SG5428XF SFP STACKABLE LITE L3 4SLOT 10G-20SLOT SFR GIGABIT 4P COMBO SFP/RJ45 GIGABIT 4SLOT SFP+

CARATTERISTICHE HARDWARE
Interfaccia:
- 20× 100/1000 Mbps SFP Slots
- 4× Gigabit RJ45/SFP Combo Ports
- 4× 1/10 Gbps SFP+ Slots
- 1× USB 2.0 Port
- 1× RJ45 Console Port
- 1× USB Type-C Console Port
Numero ventole: 1 Fan
Alimentazione: 100-240 V~50/60 Hz
Dimensioni ( L x P x A ): 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Tipo di montaggio: Rackmountable
Max. Power Consumption:
- 28.3 W (220V/50Hz @ 25 °C)
- 28.98 W (110V/60Hz @ 25 °C)
Max. Heat Dissipation:
- 96.503 BTU/hr (220V/50Hz @ 25 °C)
- 98.822 BTU/hr (110V/60Hz @ 25 °C)

PRESTAZIONI
Capacità di switching: 128 Gbps per Unit
Stacking:
- Stacking Number: 4
- Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
- Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
Packet Forwarding Rate: 95.23 Mpps
Tabella ARP: 16 K
Buffer (pacchetti): 12 Mbit
Jumbo frame: 9 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- Class of Service
8 Queues of Priority
Port Priority
IEEE 802.1p Priority
DSCP Priority
Queue Min-Bandwidth
Schedule Mode (SP, WRR, SP+WRR)
- Bandwidth Control:
Rate Limit
Storm Control
- Voice VLAN
- User-Defined OUI
- Smoother Performance
- Action for Flows: QoS remark (802.1P Remark, DSCP Remark)

Caratteristiche L3:
- IP Interfaces: IPv4: Max 128, IPv6: Max 128
- ARP:
Static Entries 512
Dynamic Entries 3,600
- ND Dynamic Entries 3,600
- Static Route: IPv4: Max 512, IPv6: Max 128
-Host Route: IPv4: Max 1,024, IPv6: Max 890
- Network Route: IPv4: Max 1,796, IPv6: Max 450
- RIP: Version v1/v2
RIPng
- OSPF: Version V2/V3
- Proxy ARP
- DHCP Server:
Max 64 IP Pools
Max 8,000 Leases
Max 1,000 Manual Binding Entries
- DHCP Relay:
Relayed Interface
Relayed VLAN

Funzionalità L2 e L2+:
- Link Aggregation
- Spanning Tree Protocol
- Port-based and VLAN-based Loopback Detection
- 802.3x Flow Control
- ERPS
- Mirroring
- RSPAN
- MAC Address Table
- Multicast:
IGMP Snooping
MLD Snooping
L2 Multicast Table: Max 2,000
Fast Leave
Multicast VLAN Registration (MVR)
Static Multicast Groups
Multicast Filtering

Caratteristiche avanzate:
- Automatic Device Discovery
- Batch Configuration
- Batch Firmware Upgrading
- Intelligent Network Monitoring
- Abnormal Event Warnings
- Unified Configuration
- Reboot Schedule
ISP Features:
- 802.3ah Ethernet Link OAM
- L2PT (Layer 2 Protocol Tunneling)
- Device Link Detect Protocol (DLDP)
- DDM
- sFlow

VLAN:
- Max 4K VLAN Group (802.1q VLAN)
- 802.1Q Tagged VLAN
- MAC VLAN Entries: 60
- Multicast VLAN
- Management VLAN
- VLAN VPN (QinQ): Max 256 entries
- GVRP
- Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
- Voice VLAN
- Private VLAN

Sicurezza:
- Port Isolation
- CPU-Defend
- ARP Inspection (Dynamic ARP Inspection)
- DoS Defend
- IP-MAC-Port Binding:
1,024 Entries
DHCP Snooping
ARP Scanning
ARP Detection
IPv4 Source Guard
- IPv6-MAC-Port Binding:
1,024 Entries
DHCPv6 Snooping
ND Snooping
ND Detection
IPv6 Source Guard:
- DHCP Filter
- Static/Dynamic Port Security
Up to 64 MAC addresses per port
- Broadcast/Multicast/Unknown-unicast Storm Control: kbps/ratio control mode
- 802.1X:
Port base authentication
Mac base authentication
VLAN Assignment
MAB
Guest VLAN
RADIUS authentication and accountability support
- AAA (including TACACS+)
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv2
- IP/Port/MAC-based access control

GESTIONE
Omada App: Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management:
- Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)
- Omada Hardware Controller (Requires built-in version 5.15.20 or later)
- Omada Software Controller (Requires built-in version 5.15.20 or later)

Cloud Access: Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requiring the use of the Omada Cloud-Based Controller.

Management Features:
- Web-based GUI
- Command Line Interface (CLI) through console port, telnet
- SNMPv1/v2c/v3:
Trap/Inform
RMON (1, 2, 3, 9 groups)
- SDM Template
- DHCP/BOOTP Client
- 802.1ab LLDP/LLDP-MED
- DHCP Auto Install
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- Password Recovery
- SNTP
- System Log
- IEEE 802.3az Energy Efficient Ethernet (EEE)

ALTRO
Contenuto della confezione:
- SG5428XF Switch
- Power Cords
- Console Cable
- Rackmount Kits
- Rubber Feet
- Quick Installation Guide
Requisiti di sistema: Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7/8/10/11, MAC OS, NetWare, UNIX or Linux.
Ambiente:
- Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)
- Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
- Operating Humidity: 10–90% RH non-condensing
- Storage Humidity: 5–90% RH non-condensing
