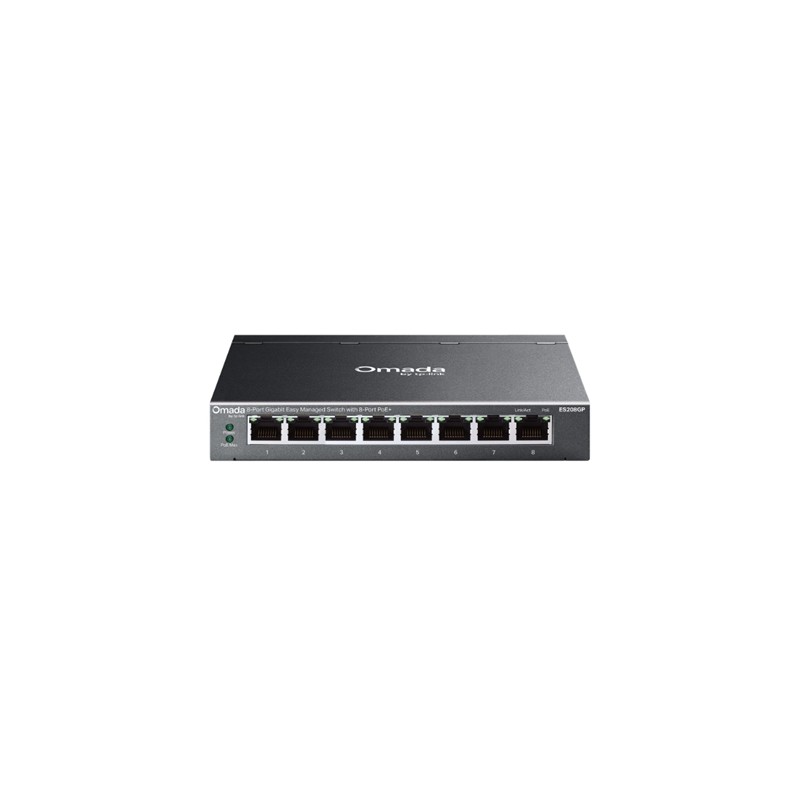

SWITCH 8P LAN GIGABIT POE+ TP-LINK ES208GP EASY MANAGED 4P GIGABIT POE (INTEG,CONTR.OMADA SDN)

CARATTERISTICHE HARDWARE
Interfaccia: 8× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3af PoE and 802.3at PoE+)
Numero ventole: Fanless
Installation:
- Desktop
- Wall Mount
Physical security lock: √
Alimentazione: DC Power Adapter (Output: 53.5V DC / 1.31A)
Porte PoE:
- Standard: 802.3af PoE and 802.3at PoE+ compliant
- PoE Ports: 8 ports
- PoE Budget: 64W available for all PoE+ ports, 30W max per port
- Remote Camera Reboot†
- Up to 820ft (250m) PoE transmission distance
Dimensioni ( L x P x A ): 158 × 100.7 × 25.4 mm
Surge Protection: Service port: ±6 kV

PRESTAZIONI
Capacità di switching: 16 Gbps
Packet Forwarding Rate: 11.904 Mpps
Tabella ARP: 8K
Buffer (pacchetti): 4 Mbit
Jumbo frame: 15 KB

CARATTERISTICHE SOFTWARE
QoS (Quality of Service):
- 802.1p DSCP Priority
- 8 Priority Queues
- Priority Schedule Mode
- WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control
- Port-Based Rating Limit
- Storm Control
- Multiple Control Modes (kbps/pps)
- Broadcast/Multicast/Unknown-Unicast Control
Funzionalità L2:
- Link Aggregation
- Static Link Aggregation
- Up to 2 aggregation groups and up to 4 ports per group
- Loopback Detection
- Flow Control
- 802.3x Flow Control
- Mirroring
- Port Mirroring
- One-to-One
- Many-to-One
- Ingress/Egress/Both
- Port Statistics
- Port Mirror Status
- Traffic Statistics
- 802.1ab LLDP
L2 Multicast:
- IGMP Snooping
- IGMP v1/v2/v3 Snooping
- Fast Leave
VLAN:
- MTU VLAN
- Port-Based VLAN
- 802.1Q Tag VLAN
- Max 32 VLAN Groups
- 4K VID
Metodo di trasmissione: Store and Forward

GESTIONE
Omada App: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management:
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access: Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning: Yes. Requires the use of Omada Cloud-Based Controller
Management Features:
- Web-based GUI
- DHCP Client
- Cable Diagnostics

ALTRO
Certificazione: FCC, CE, RoHS
Contenuto della confezione:
- ES208GP
- Power Adapter
- Power Cord
- Installation Guide
- Rubber Feet
Ambiente:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
