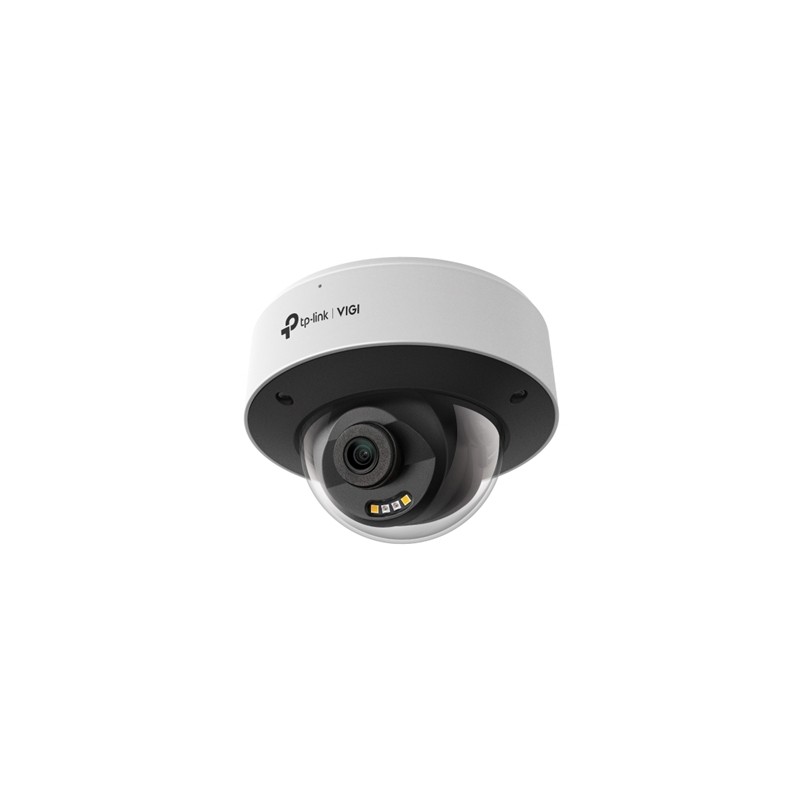

VIDEOCAMERA TP-LINK VIGI INSIGHT S245(4MM) DOME A COLORI 4MP-4MM VISIONE NOTT.A COL.FINO 30MT-SMARTVID

Camera
Sensore di immagine: 1/2.7” Progressive Scan CMOS
Shutter Speed: 1/3 to 1/10000 s
Slow Shutter: Yes
Luminosità minima: 0.005 Lux; 0 Lux with IR/White light
Meccanismo giorno/notte: IR Cut Filter
Day/Night Switch: Unified/ Scheduled/ Auto

Lens
Type: Fixed Focal Lens
Focal Length: 2.8 mm / 4 mm
Aperture: F1.6
FOV:
- 2.8 mm: Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5°
- 4 mm: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Lens Mount: M12*P 0.5
DORI Distance:
- 2.8 mm Detect: 64 m (210 ft), Observe: 27 m (89 ft), Recognize: 13 m (43 ft), Identify: 6 m (20 ft)
- 4 mm Detect: 80 m (262 ft), Observe: 33 m (108 ft), Recognize: 16 m (52 ft), Identify: 8 m (26 ft)
Angle Adjustment (Manual): Range Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355°

Illuminator
Illuminator Type: 2× IR LED, 2× White LED
IR LED: Quantity: 2, Range: 30m, Wavelength: 850nm
Illuminator Distance: 30 m (98 ft)
White LED: Quantity: 2, Range: 30m
Illuminator On/Off Control: Auto/Scheduled/Always on/Always off

Video
Max. Resolution: 2688 x 1520
Main Stream:
- Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
- Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream:
- Frame Rate 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
- Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
- Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control: CBR, VBR
Video Compression:
- Main Stream: H.265+/H.265/H.264+/H.264
- Sub-Stream: H.265/H.264
H.264 Type: High Profile
H.264+: Main Stream Supported
H.265 Type: Main Profile
H.265+: Main Stream Supported
Video Bit Rate:
- Main Stream: 256 Kbps to 6 Mbps
- Sub-Stream: 64 Kbps to 512 Kbps

Image Settings: Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement: BLC/3D DNR/HLC/Smart IR
Wide Dynamic Range: 120 dB
Note: When People & Vehicle Analytics is enabled, only DWDR is supported.
SNR: ≥ 52 dB
Image Parameters Switch: Yes
Privacy Mask: Up to 4 Masks
ROI: 1 Region
OSD Setting: Yes

Audio
Comunicazione audio: Two-Way Audio
Ingresso audio: Yes
Uscita audio: Yes
Codec audio: Yes
Audio Sampling Rate: 8KHz
Environment Noise Filtering: Yes
Audio Bit Rate: 64 Kbps(G.711 alaw)

Network
Protocol: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF: Yes
API: Open Network Video Interface (Profile S/T/G)
Simultaneous Live View: 3 Main Streams & 3 Sub-Streams
Client: VIGI App, Web UI, VIGI VMS, Utility
Web Browser:
- Google Chrome 57 and above
- Firefox 52 and above
- Safari 11 and above
- Microsoft Edge 91 and above
Cloud: Yes
Sicurezza: Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Allarme e gestione evento
Smart Event: Intrusion Detection, Line-Crossing Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection, People Detection, Vehicle Detection, Abnormal Sound Detection, Scene Change Detection
Basic Event: Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts), Camera Tampering, Exception (Illegal Login)
Alarm Linkage: Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method: N/A
Output Notification: Message Push
Deep Learning Function: People & Vehicle Analytics: Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.

Interfacce
Interfaccia di rete: 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Allarme: N/A
Reset Button: Yes
Power: DC Power Port
On-board Storage: Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB
Built-in Microphone: Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker: Yes
Audio: N/A

Generale
Operating Temperature: -30–60 °C
Storage Temperature: -40–60 °C
Operating Humidity: 95% or Less (Non-Condensing)
Storage Humidity: 95% or Less (Non-Condensing)
Contenuto della confezione:
- VIGI Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Material: Metal
Net Weight: 0.62 Kg
Power Supply: 12V DC ± 5%, Max. 10.54 W, 5.5 mm Coaxial Power Plug; PoE: 802.3af/at, class 0, Max. 12.52 W
Protection: IP67 Waterproof, IK10 Vandal Proof
Product Dimensions (L x W x H): 4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm)
Certifications: CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
