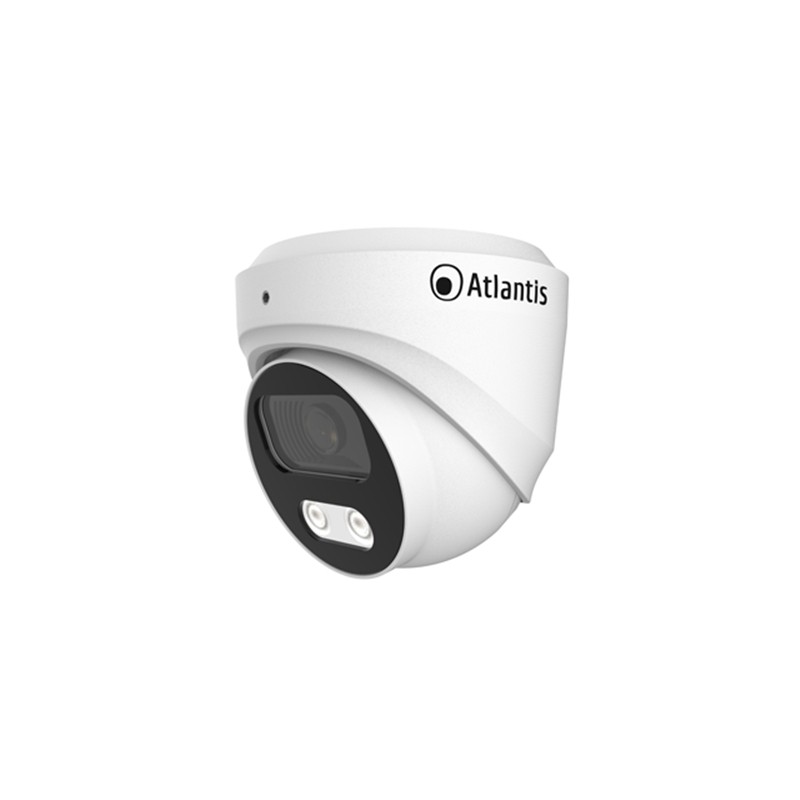

VIDEOCAMERA IP ATLANTIS A11-U810A-DP ULTRAPLEX SUPP.POE A/B DOME BIANCA-8MP IP67 CMOS1/2.7"-OTT.FISSA 2.8MM-IR CUT - FINO 10MT

Product name
IP Camera A11-U810A-DP

Code
A11-U810A-DP

Resolution
8MegaPixel (3872 x 2180)

Type
Dome

Protocol
Onvif (v2.4), RTSP

Lan interface
RJ-45 Ethernet 10/100 Base-T

PoE
IEEE802.3af in Mode A & B

Chipset
FH8856V310+GC8613

Sensor
1/2.9" CMOS

Min illumination
0 LUX with IR ON

IR distance
IR LED: SMD (42u) x 2 (IR 850nm) Up to 10mt

IR filter
Mechanical IR Cut Filter (light Sensor)

Lens
2.8mm Fixed Lens (102° Horizontal, 86° Vertical)

Streaming
H.265/H.264/MJPEG (only for subs tream)

Resolution
Main Stream: 8MP (3840x2160)@20fps, 6MP (3200x1800)@20fps,
5MP (2880x1620)@20fps, 2MP (1920x1080)@30fps
1MP (1280x720)@30fps
Sub Stream: (1280x720)@25fps, (720x480)@25fps, (352x288)@25fps
3rd Stream: (352x288)@15fps

Video parameters
Brightness, Contrast, Saturation, Sharpness, Ircut mode and delay,
Exposure (Auto, Manual), BackLight, White Balance (Auto, Manual), 2D-NR, 3D-NR,
Defog, Image Enhancement (Flicker Control, SW WDR).

Access
Multiple user access levels with password protection

Max users
5 simultaneous users, Unlimited number of users using multicast,
3 different users (Admin, Guest, Viewer)

Network
IP, DHCP, DNS, NTP, FTP, SMTP

Management
WEB (IE, FireFox), ONVIF (CMS, NVR)

Remote / local view
WEB (IE, FireFox), ONVIF (CMS, NVR), APP (Android, Apple), RTSP Player

Alarm
Motion Detection or Smart Event->Mail, FTP, Cloud, Light Warm

Advanced
Scheduled AutoReboot, Privacy Mask (3), Video Tampering, ROI,
RTMP (direct Youtube streaming Video)

Recording mode
CMS, NVR, Chrome, APP

CMS (Windows)
CMS (up to 100 cameras)

System requirement
TCP/IP protocol must be installed on each PC

Waterproof rating
IP67

Dimensions (DxH)
96 Diameter x 91(H) mm

Weight
300 g

Temperature range
-10°C ~ 40°C RH 85% Max

Housing
Metal

Power supply
DC12V, 1000mA max Or Using PoE(Mode A/B)
