Riferimento: E301L-KNNN-S00
Marca: COOLER MASTER
CABINET ATX MINI TOWER COOLER MASTER E301L-KNNN-S00 ELITE 301 LITE NERO ITX/MATX 1X3.5 2X2.5 3X120MM-FAN USB-C
Cod. Articolo V20828
Specifications

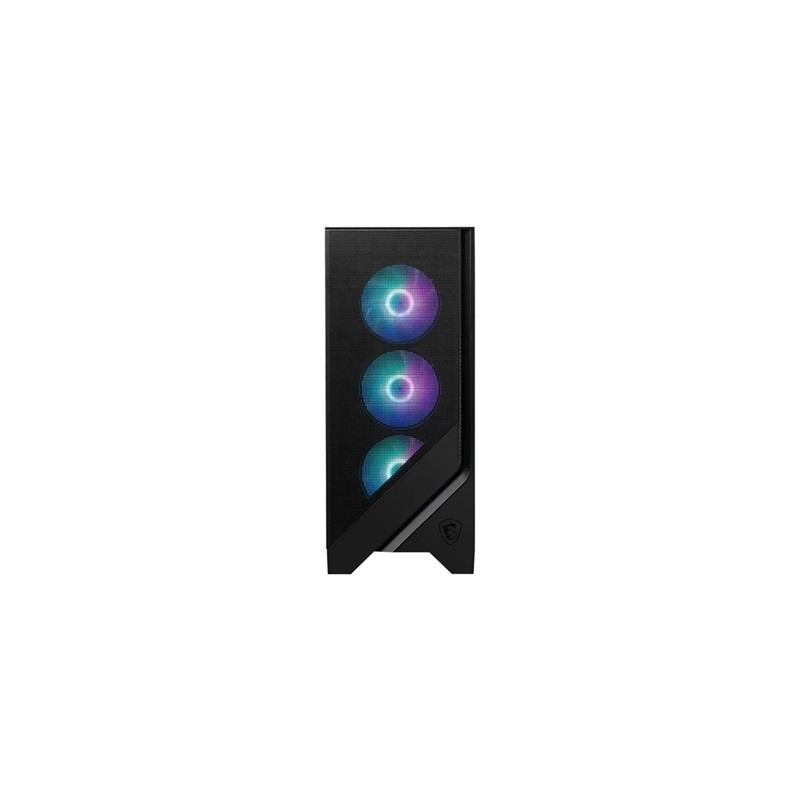

Product name: MAG FORGE 320R AIRFLOW
Case form factor: Mid tower
Motherboard form factor support: ATX / Micro-ATX / Mini-ITX
I/O ports:
2 x USB 3.2 Gen 1 Type-A
1 x Audio-out
1 x Mic-in
1 x LED switch
Drive mount support: 1 x 2.5", 2 x 2.5" / 3.5"
Expansion slots: 7
Maximum GPU length: 390 mm / 15.35 inches
Maximum GPU height: 150 mm / 5.91 inches
Maximum CPU cooler height: 160 mm / 6.29 inches
Power supply support: ATX
Maximum PSU length: 200 mm / 7.87 inches (without 2.5"/3.5" HDD tray installation)
Fan size support:
Front: 3 x 120 mm / 2 x 140 mm
Top: 3 x 120 mm / 2 x 140 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm
PSU shroud: 2 x 120 mm
Pre-installed fan size:
Front: 3 x 120 mm
Rear: 1 x 120 mm
Pre-installed fan type:
Front: 3 x ARGB fan
Rear: 1 x ARGB fan
Radiator size support:
Front: 120 / 140 / 240 mm
Top: 120 / 240 / 280 / 360 mm
Rear: 120 mm
Dimensions (DxWxH): 472.5 x 210 x 498 mm / 18.60 x 8.26 x 19.60 inches
Net weight: 7.05 kg / 15.54 lbs
Gross weight: 8.35 kg / 18.41 lbs
Connections
Power button
LED switch button
Audio out
Mic in
2 x USB 3.2 Gen 1 Type-A
