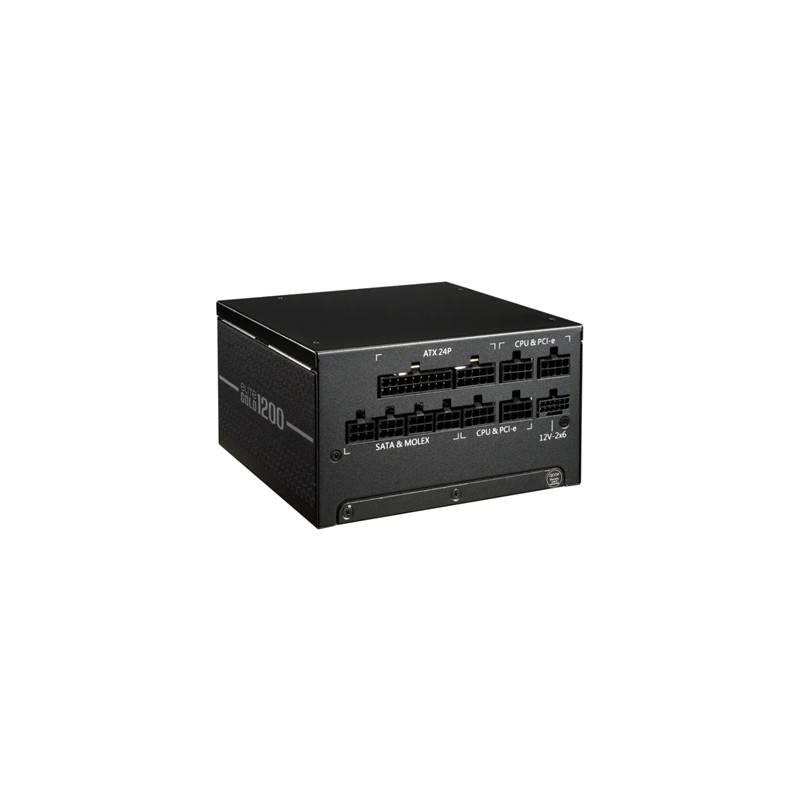

ALIMENTATORE ATX 1200W COOLER MASTER ELITE GOLD MPW-C001-AFAG-BEU 1200WATT 80+ ACTIVE PFC FAN135MM MODULARE

Product name
ELITE GOLD 1200

Model
MPW-C001-AFAG

ATX version
ATX 12V Ver. 3.1

PFC
Active PFC

Input voltage
100-240V

Input current
7.5 ~ 15A

Input frequency
50-60Hz

Dimensions (L x W x H)
150 x 150 x 86 mm

Fan size
135mm

Fan bearing
FDB

Efficiency
≥90% @ Typical Load

80 PLUS rating
80 PLUS Gold

ErP 2014 Lot 3
Yes

Operating temperature
0-40°C

Power good signal
100 - 150 ms

Hold up time
≥16ms at 80% Load

MTBF
>100,000 hours @ 25℃ ambient

Protections
UVP / OVP / OPP / OTP / SCP

Regulatory
cTUV us, CB, CE, FCC, BSMI, EAC, RCM, UKCA, RoHS2.0 , REACH

ATX 24 Pin connectors
x1 = 1 (600mm)

EPS 4+4 Pin connectors
x2 = 2 (700mm)

SATA connectors
x9 = 3 (500+100+100mm)

Peripheral 4 Pin connectors
x3 = 1 (500+100+100mm)

PCI-e 6+2 Pin connectors
x6 = 3 (550+120mm)

12+4 Pin connectors
x1 = 1 (600mm)

Series
Elite Series

Form factor
ATX

Watts
1200W

Modular
Fully Modular

80 Plus efficiency
Gold
